Cold freshwater lid on North Atlantic

At least ten tipping points look set to hit the Arctic hard, as described in an earlier post. Tipping points are abrupt climate changes that typically occur as self-reinforcing feedback loops start to kick in. Such tipping points can coincide and they are in many ways interrelated, making that the danger is compounded by the domino effect of multiple tipping points hitting one another.

One feedback that is rarely-mentioned is the cold freshwater lid that is forming at the surface of the North Atlantic.


Arctic is heating up faster than the rest of world.
Temperatures in the Arctic are rising faster than elsewhere in the world, as illustrated by the image on the right and discussed at the Feebacks page. As a result, the temperature difference between the North Pole and the Equator narrows and this slows down the overall speed at which the Jet Stream circumnavigates Earth. It also widens the band within which the Jet Stream travels, so at times the jet stream will fan out widely or become much more wavy.

This deformed Jet Stream can cause more hot air to travel from the Atlantic Ocean and Pacific Ocean into the Arctic, as well as more cold air to travel out of the Arctic and descend over Europe, Asia and North America. At the same time, increasingly higher temperatures are strengthening the wind over oceans, in turn increasing the speed of ocean currents and wave height.

The image below, from an earlier post, shows the situation on September 6, 2020, when high sea surface temperatures on the Northern Hemisphere and a narrow difference between the Equator and the North Pole distorted the Jet Stream, making it cross the Arctic Ocean, form circular wind patterns and reach high speeds over the North Atlantic. The globe on the right shows that the Gulf Stream off the North American coast reached speeds of 8 km/h or 5 mph (at green circle).

[ click on images to enlarge ]
Earth's climate system features zonal flow and meridional flow, both of wind and ocean currents. Zonal flow follows patterns along Earth's latitudes, from west to east, or from east to west. Meridional flow follows patterns along Earth's longitudes, from north to south, or from south to north.

Overall, wind and ocean currents become stronger as kinetic energy increases as a result of Earth's Energy Imbalance (EEI) which heats up oceans and makes winds stronger, in turn speeding up global ocean currents. The 2020 study by Hu et al. found increased kinetic energy in about 76% of the upper 2,000 meters of global oceans, as a result of intensification of surface winds since the 1990s.

Accordingly, the increased kinetic energy that results from EEI will strengthen zonal flow, especially in Winter when there can be large differences between high ocean temperatures and low land temperatures, and especially at times when polar air reaches lower latitudes on land due to the more wavy Jet Stream.

Meridional flow will also strengthen, but there is a meridional feedback that results from polar amplification narrowing the temperature difference between the poles and the tropics, thus reducing the strength of meridional flow and also making the Jet Stream form more wavy patterns that can be sustained for longer periods of time.

The Gulf Stream is an ocean current that extends into the Arctic Ocean, as pictured below. It is driven by the Coriolis force and by prevailing wind patterns. It contributes to the stronger and accelerating Arctic temperature rise (compared to the rise in the rest of the world), which in turn causes deformation of the Jet Stream, and this can at times cause strong winds to speed up this ocean current, resulting in large amounts of salty, warm water entering the Arctic Ocean, as discussed in an earlier post. For more on the Gulf Stream and ocean currents, also see the links below.

[ image from earlier post ]

The Atlantic meridional overturning circulation (AMOC) is the main current system in the Atlantic Ocean, and is also part of the global thermohaline circulation, a single "conveyor belt" of water that continuously flows through many parts of the world's oceans. AMOC is driven by changes in weather, temperature and salinity. The saltier the water, the denser it is, and the water in the North Atlantic is particularly salty, due to high evaporation. At higher latitudes in the North Atlantic, the salty water will sink, since cold water is also denser than warm water.

In the Atlantic, AMOC follows meridional flow directions, so AMOC is affected by the meridional feedback that slows down vertical (meridional) wind patterns and ocean currents. Additionally, AMOC is affected by increased meltwater, increased stratification and formation of a freshwater lid at the ocean surface. The net result is that AMOC is slowing down, which includes slower downwelling of salty hot water in areas of deep water formation.

The image on the right, from Schmidt et al. (2023), provides a schematic of Antarctic Bottom Water (AABW) formation, i.e. deep water formation near Antarctica, which has an important role in global circulation and the overturning patterns of the ocean, distributing heat, salt, carbon and nutrients.

The image depicts how weaker easterly winds can result in more heat getting carried down to greater depth and more Sea ice formation around Antarctica.

Conversely, stronger easterly winds can result in more heat getting carried down to greater depth. Furthermore, weaker northerly winds (blowing in southward direction) can result in less heat getting carried down to greater depth with more heat accumulating at the surface around Antarctica, causing more sea ice to melt.

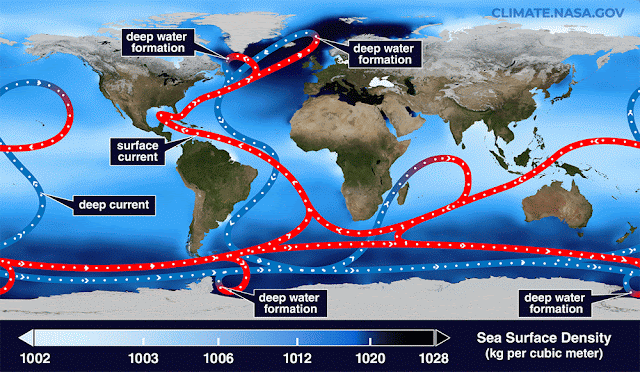

The above animation shows the direction of major ocean currents in the global ocean circulation system, with deep currents indicated in blue and surface currents indicated in red, while four areas are marked where deep water formation takes place.

The image on the right, from Purcell (2017), shows multiple meridional ocean currents that carry heat towards the poles.

Slowing down of these currents can result in more heat accumulating at the surface of both the North Atlantic and the Southern Ocean around Antarctica.

At times, much of that accumulated heat can be pushed toward the poles in the path of surface currents and sped up by a deformed Jet Stream.

Below follow a number of images showing wind speed at different pressure levels, i.e. 850 hPa and 250 hPa (Jet Stream), wave height, sea surface temperature anomalies and 3-hour precipitation accumulation, all on December 12, 2020.

The first image below shows that, on December 12, 2020, waves as high as 12.95 m or 42.5 ft (green circle) were recorded in the North Atlantic, and wind speed was 139 km/h or 86 mph (at 850 hPa) at that location.

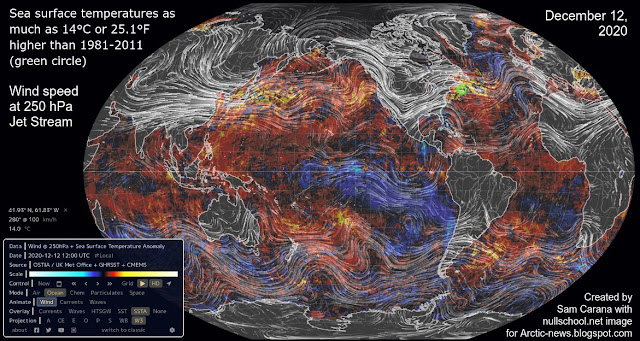

The next image (below) shows that, on December 12, 2020, sea surface temperatures were very high off the east coasts of Asia and North America, where ocean currents carry hot water to the north-east. As the image shows, the sea surface temperature was 14°C or 25.1°F higher than 1981-2011 at the green circle.


High sea surface temperatures are causing winds over oceans to get much stronger than they used to be at this time of year. The image below shows that, on December 12, 2020, the jet stream reached speeds as high as 324 km/h or 201 mph (at the green circle), while instantaneous wind power density at 250 hPa (jet stream) was 141.1 kW/m².


These strong winds then collide at high speed with the air in front that is moving at a slower speed. This collision occurs with an even greater force due to the lower overall speed at which the jet stream circumnavigates Earth, and especially in Winter on the Northern Hemisphere, when temperatures over land (i.e. North America, Europe and Asia) are low. Where such collisions occur, the air gets strongly pushed aside toward the Arctic and the Equator. The images show the Jet Stream crisscrossing the Equator and moving high up in the Arctic.


Above image shows 3-hour precipitation accumulation as high as 94 mm or 3.7 in (at the green circle) on December 12, 2020.

At times, the Jet Stream can reach even higher speeds. The image on the right shows that on December 20, 2020, the Jet Stream reached a speed of 406 km/h or 252 mph at the green circle, while the Jet Stream crosses the Equator in the south and, in the north, wind forms a circular pattern over the Arctic Ocean. As described in an earlier post, the Jet Stream was as fast as 411 km/h or 255 mph south of Greenland (at the green circle), before crossing the Arctic Ocean on November 4, 2020.

As said, as ocean heat increases, the temperature difference between land and oceans increases in Winter on the Northern Hemisphere, when land is cold.

The temperature difference increases even more at times when cold air descends from the Arctic over North America and over Europe and Asia. This larger temperature difference results in stronger winds that can carry more warm, moist air farther down the track of the Gulf Stream, as illustrated by image on the right that shows precipitation in mm per hour.

Ocean stratification occurs due to differences in density, with warmer, lighter, less salty water layering on top of heavier, colder, saltier water. Increasingly, ocean stratification results in less nutrients from greater depth reaching the surface and resulting in the formation of a freshwater lid on top of oceans.

[ image from: 10°C or 18°F warmer by 2021? ]
Until now, about 93% of the extra heat from the Earth's energy imbalance has ended up in the ocean as increasing ocean heat content. Less than 1% remains in the atmosphere. The top few meters of the ocean store as much heat as Earth's entire atmosphere. Further stratification could cause more heat to remain in the atmosphere or to reach only the surface of the oceans, instead of sinking to greater depth as previously. As temperatures rise, the atmosphere will suck up more water vapor along with heat, while stronger storms could also cause more of the heat at the surface of the oceans to re-enter the atmosphere.

Stronger ocean stratification, in combination with higher sea surface temperatures and distortions of the Jet Stream, can cause a sudden strengthening of the wind, which can be supported by cyclones, and this can abruptly push a lot of warm, moist air from the Atlantic Ocean into the Arctic Ocean.

[ click on images to enlarge ]
As oceans heat up, more water evaporates from the sea surface. This evaporation will cool the sea surface somewhat, so the sea surface can be colder than the water just underneath the sea surface.

Much of the moisture that evaporates from the sea surface will get blown farther along the path of the Gulf Stream in the direction toward the Arctic before precipitating, thus contributing - along with meltwater - to the formation of a cold freshwater lid at the surface of the Atlantic Ocean.

The image on the right shows a wavy Jet Stream pushing precipitation north over the Atlantic Ocean, with 0.9 mm or 0.04 in of precipitation (3-hour accumulation) reaching the North Pole on December 24, 2020.

The Argo float compilation image below illustrates the presence of a cold freshwater lid on top of the ocean, where water from the North Atlantic flows into the Arctic Ocean.


In conclusion, stronger winds along the path of the Gulf Stream can at times speed up sea currents that travel underneath this cold freshwater lid over the North Atlantic. As a result, huge amounts of warm, salty water can travel from the Atlantic Ocean to the Arctic Ocean, abruptly pushing up temperatures and salinity levels at the bottom of the Arctic Ocean and thus threatening to destabilize methane hydrates that are contained in sediments at the seafloor of the Arctic Ocean. The danger is especially large where seas are shallow in the Arctic Ocean, such as the East Siberian Arctic Shelf (ESAS), and where methane is present in submarine permafrost.

The above image was created with content from a paper by Natalia Shakhova et al., from an earlier post


The panel on the left of the above image, from an earlier post, shows sea surface temperatures on June 20, 2020, while the panel on the right shows a bathymetry map indicating that the sea in a large part of the Arctic Ocean is very shallow.


The above map shows the thickness of Northern Hemisphere permafrost on land and below the seabed.

As the image on the right shows, sea surface temperatures off the east coast of North America were very high on January, 2021, as much as 15.4°C or 27.7°F higher than 1981-2011 at the green circle.

In the Arctic Ocean itself, increased flow of freshwater from rivers can also lead to a more extensive freshwater lid at the surface, since freshwater doesn't mix well with the more salty water underneath.

Similar to the Gulf Stream in the North Atlantic, the Kuroshio Current transports warm equatorial water poleward in the Pacific Ocean.

Studies, some of which dating back more than two decades, show that over the shallow East Siberian Arctic Shelf (ESAS) winds at times can mix the water column from the top to the bottom.  A study of the ESAS shows that, in September 2000, water temperatures at the seafloor were 4.7°C at 20m depth at one location and 2.11°C at 41m depth at another location, with salinity levels of 29.7‰ and of 31.7‰, respectively.

The animation on the right shows how remnants of Typhoon Merbok were forecast to enter the Arctic Ocean through the Bering Strait from September 17 to 19, 2022.

In summary, the danger is that further stratification and stronger storms will enable more warm, salty water to travel from both the Atlantic Ocean and the Pacific Ocean into the Arctic Ocean and reach shallow parts of the Arctic Ocean such as the ESAS, pushing up temperatures and salinity levels at the seafloor and destabilizing methane hydrates, in turn resulting in eruptions of methane from these hydrates and from free gas contained in sediments at the seafloor of the Arctic Ocean, as discussed at this post. The image on the right illustrates the danger. On January 24, 2022, heat carried along the path of the Jet Stream from the North Atlantic to the Arctic resulted in a cyclone around Svalbard with record low pressure, record weekly loss of sea ice cover, record surface wind speeds and large waves-in-sea ice up to 2 m in amplitude more than 100 km into the ice pack, as discussed in a 2022 study

Latent heat loss, feedback #14 on the Feedbacks page

Further feedbacks of the associated temperature rise can make the situation even more threatening, e.g. more methane over the Arctic would push up temperatures locally over the Arctic Ocean as well as over the permafrost on land. A 2020 study by Turetsky et al. found that Arctic permafrost thaw plays a greater role in climate change than previously estimated. Such eruptions of methane could, on their own, cause the 1200 ppm CO₂e clouds feedback tipping point to be crossed within years, which in turn can cause global temperatures to rise by 8°C, as discussed in an earlier post

Further events and developments could cause the clouds tipping point could be crossed soon, e.g. if the rise in methane kept following a trend as depicted in the image below, showing WMO 2015-2021 global annual surface mean methane abundance, with a trend added.
[ from earlier post ]
The trend points at a potential mean global abundance of methane of more than 700 ppm CO₂e by the end of 2026, implying that when including further forcers the clouds tipping point could be crossed in 2026. Furthermore, the trend points at 1200 ppm CO₂e getting crossed in 2028 due to the forcing of methane alone.
