Wednesday, May 1, 2019

Greenhouse Gas Levels Keep Accelerating

Carbon Dioxide

Weekly CO₂ (carbon dioxide) levels at Mauna Loa, Hawaii, in May, 2019, reached 415.39 ppm, as above image shows. An ominous trendline points at 420 ppm in 2020.

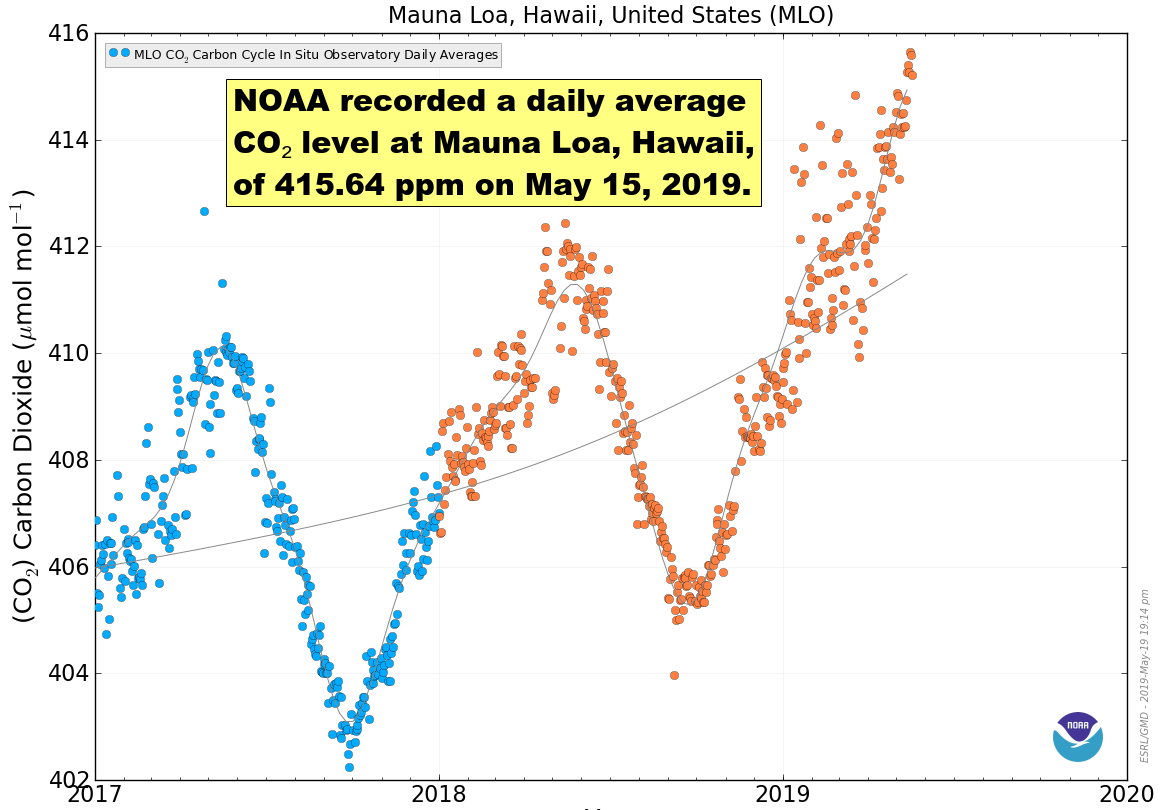

The daily average CO₂ level recorded by NOAA at Mauna Loa, Hawaii, on May 15, 2019, was 415.64 ppm, as above image shows. The image below also shows hourly average levels from April 15, 2019, to May 15, 2019.

Current CO₂ levels far exceed levels that were common during the past 800,000 years, as the image below shows. CO₂ levels moved between roughly 180 and 280 ppm, while the temperature went up and down by some 10°C or 18°F.

The daily average CO₂ level recorded by at Mauna Loa, Hawaii, on May 13, 2019, was 415.5 ppm and the May 15, 2019, level was 415.7 ppm. On May 14, 2019, one hourly average exceeded 417 ppm.

The situation is dire

This level of 417 ppm is 139 ppm above the CO₂ level in the year 1750 and more than 157 ppm above what the CO₂ level would have been if levels had followed a natural trend. As shown by the inset (from Ruddiman et al.) in above image, a natural trend points at levels below 260 ppm.

Furthermore, methane levels are rising even faster than CO₂ levels. While CO₂ levels did rise by 146% since 1750, methane levels did rise by 257% since that time and there is much potential for an even faster rise in methane levels due to seafloor hydrate releases. Levels of nitrous oxide also keep rising rapidly.

Such a rise in greenhouse gas levels has historically corresponded with more than 10°C or 18°F of warming, when looking at greenhouse gas levels and temperatures over the past 420,000 years, as illustrated by the image below.

Given that a 100 ppm rise in CO₂ did historically cause temperatures to rise by 10°C or 18°F, how much warming would be in line with a 157 ppm CO₂ and how fast could such a rise unfold?

A temperature of 10°C or 18° above 1750 seems in line with such high greenhouse gas levels. This is illustrated by above graph, based on 420,000 years of ice core data from Vostok, Antarctica, and as the post What Does Abrupt Climate Change Look Like? describes.

Why isn't it much warmer now? Why hasn't such a rise happened yet? Oceans and ice are still holding off such a rise, by absorbing huge amounts of warming. Of 1993-2003 warming, 95.5% was absorbed by oceans and ice. However, ocean stratification and ice loss are making the atmosphere take up more and more heat.

There are further warming elements, in addition to the accelerating rise in greenhouse gas levels. Mentioned above is the loss of the snow and ice cover. The domino effect is a popular way to demonstrate a chain reaction. It is typically sequential and typically uses dominoes that are equal in size. A chain reaction can be achieved with solid dominoes each as much as 1.5 times larger than the previous one. The exponential function is discussed in the video below by Guy McPherson. Rather than following a linear order, warming elements can be self-reinforcing feedback loops and can influence each other in ways that multiply (rather than pass on) their impact, which can speed up the temperature rise exponentially.

So, how fast and by how much could temperatures rise? As oceans and ice are taking up ever less heat, rapid warming of the lower troposphere could occur very soon. When including the joint impact of all warming elements, as described in a recent post, abrupt climate change could result in a rise of as much as 18°C or 32.4°F by 2026. This could cause most life on Earth (including humans) to go extinct within years.


Next to carbon dioxide, there are further greenhouse gases. Methane is important, because of its high short-term potency as a greenhouse gas and because methane levels in the atmosphere have hugely risen since 1750, and especially recently, as illustrated by the image on the right.

Carbon dioxide (CO₂), methane (CH₄) and nitrous oxide (N₂O) levels in the atmosphere in 2017 were, respectively, 257%, 146% and 122% their 1750 levels.

A recent study by Turetsky et al. concludes that, since sudden collapse releases more carbon per square metre because it disrupts stockpiles deep in frozen layers, and since abrupt thawing releases more methane than gradual thawing does, the impact of thawing permafrost on Earth’s climate could be twice that expected from current models.

As said, there also is a huge and growing danger of large abrupt methane releases from clathrates contained in sediments at the seafloor of the Arctic Ocean.

As illustrated by the image below, methane levels are rising and this rise is accelerating.

The graph shows July 1983 through December 2018 monthly global methane means at sea level, with added trend. Higher methane means can occur at higher altitude than at sea level. On Sep 3, 2018, daily methane means as high as 1905 ppb were recorded at 307 mb, an altitude at which some of the strongest growth in methane has occurred, as discussed in earlier posts such as this one.

The recent rise in methane is the more worrying in the light of recent research that calculates that methane's radiative forcing is about 25% higher than reported in IPCC AR5, implying that methane's GWP (global warming potential) over 10 years may be well over 150 times as much as CO₂.

Nitrous Oxide

Next to carbon dioxide and methane, there are further greenhouse gases, of which nitrous oxide is particularly important. Nitrous oxide is up to 300 times as potent as a greenhouse gas as carbon dioxide and has a lifetime of 121 years. Several recent studies point at the danger of huge releases of nitrous oxide from permafrost.

According to a 2017 study by Voigt et al., Arctic permafrost contains vast amounts of nitrogen (more than 67 billion tons). Warming of the Arctic permafrost is accelerating, causing rapid thaw of permafrost soils, and this now threatens to cause huge releases of nitrous oxide to the atmosphere. The study concluded that nitrous oxide emissions in the Arctic are likely substantial and underestimated, and show high potential to increase with permafrost thaw.

In the video below, Paul Beckwith discusses nitrous oxide.

In the video below, Paul Beckwith discusses the recent study by Wilkerson et al.

The study by Wilkerson et al. shows that nitrous oxide emissions from thawing Alaskan permafrost are about twelve times higher than previously assumed. A 2018 study by Yang et al. points at the danger of large nitrous oxide releases from thawing permafrost in Tibet. Even more nitrous oxide could be released from Antarctica. The danger is illustrated by the image below, which shows that massive amounts of nitrous oxide were recorded over Antarctica on April 29, 2019.

Depletion of the Ozone Layer

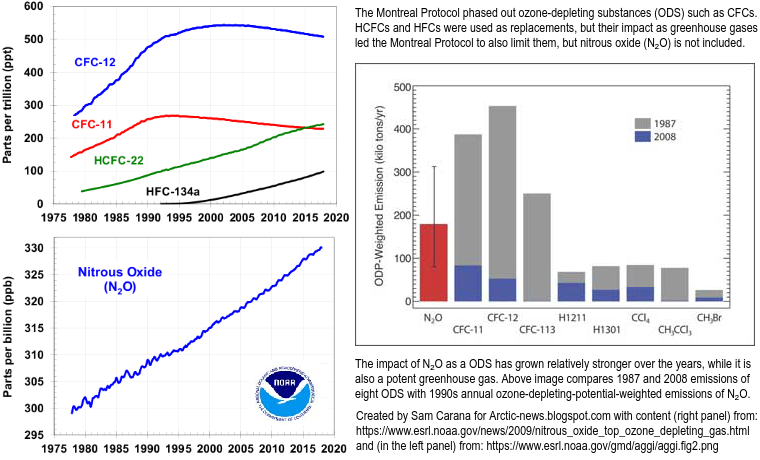

In addition to being a potent greenhouse gas, nitrous oxide is also an ozone depleting substance (ODS). As the left panel of the image below shows, growth in the levels of chlorofluorocarbons (CFCs) has slowed over the years, yet their impact will continue for a long time, given their long atmospheric lifetime (55 years for CFC-11 and 140 years for CFC-12). Since nitrous oxide levels continue to increase in the atmosphere, while the impact of CFC-11 and CFC-12 is slowly decreasing over time, the impact (as an ODS) of nitrous oxide has relatively grown, as the right panel of the image below shows.

[ from an earlier post ]
James Anderson, co-recipient of the 1995 Nobel Prize in chemistry for his work on ozone depletion, said in 2018 that "we have five years to save ourselves from climate change".

Comprehensive Action

In conclusion, while it's important to reduce emissions of all greenhouse gases, reducing emissions of methane and nitrous oxide is particularly important. To both reduce polluting emissions and to remove greenhouse gases from the atmosphere and oceans, the Climate Plan recommends feebates as depicted in the image below. As the image also mentions, further lines of action will be needed to avoid a rapid rise in temperature.

[ from an earlier post ]
Meanwhile, Arctic sea ice reached a new record low for April, as illustrated by the NSIDC image below.

In the video below, Guy McPherson describes what threatens to eventuate soon. This is an edit of the April 22, 2019, video in which Guy McPherson was interviewed by Peter B. Collins for the community television station in Marin County, California.

In the video below, Guy McPherson gives a presentation at the Center for Spiritual Living, in Chico, April 28, 2019.

The situation is dire and calls for comprehensive and effective action as described in the Climate Plan.


• Climate Plan

• Permafrost collapse is accelerating carbon release, by Merritt Turetsky et al. (30 April 2019)

• Permafrost nitrous oxide emissions observed on a landscape scale using the airborne eddy-covariance method, by Jordan Wilkerson et al. (April 3, 2019)

• Can natural or anthropogenic explanations of late-Holocene CO2 and CH4 increases be falsified?, by William Ruddiman et al. (2011)

• Radiative forcing of carbon dioxide, methane, and nitrous oxide: A significant revision of the methane radiative forcing, by Etminan et al. (2016)

• Magnitude and Pathways of Increased Nitrous Oxide Emissions from Uplands Following Permafrost Thaw, by Guibiao Yang et al. (July 9, 2018)

• Increased nitrous oxide emissions from Arctic peatlands after permafrost thaw, by Carolina Voigt et al.

• We Have Five Years To Save Ourselves From Climate Change, Harvard Scientist Says - James Anderson (January 15, 2018)

• A rise of 18°C or 32.4°F by 2026?

• Care for the Ozone Layer

• What Does Runaway Warming Look Like?

• Rapid ice loss in early April leads to new record low - NSIDC

Friday, September 18, 2015

Arctic Sea Ice Collapse Threatens - Update 9

The image below shows that Arctic sea ice had reached a level of 4.45 million square kilometers on September 16, 2015 (end of dark blue line at center of image).

NSIDC has meanwhile called the 2015 minimum, but the first sentence of their post hastens to add that on September 11, Arctic sea ice reached its likely minimum for 2015,  at 4.41 million square kilometers (1.70 million square miles), putting 2015 in the fourth lowest place since satellite records began. Arctic sea ice minimum was lower only in 2012 (dotted line), 2007 (light blue line) and 2011 (orange line). Sea ice extent was 4.413 million square kilometers both on September 9, 2015, as well as on September 10 and 11, 2015.

September 9 would be early for the sea ice to reach its minimum, as a comparison with earlier years on above image illustrates. The dark blue line on above image shows that sea ice extent fell slightly on September 16, compared to the day before, and is now below the 2011 extent (orange line) for this time of the year. Over the next few days, sea ice extent may well fall somewhat further, and reach a level below the 2011 minimum, thus reaching the third lowest minimum extent since record began. This could eventuate due to winds compacting the sea ice.

More importantly, sea ice thickness is still falling, as illustrated by the image below showing the sea ice thickness on September 9 in the left panel and a forecast for thickness on September 24 in the right panel.

The image below compares sea ice thickness between September 24, 2012 (left panel) with that forecast for September 24, 2015 (right panel).

Above image illustrates why the situation in 2015 is even more threatening than it was in 2012. Only the ice that is colored light green, yellow and red is more than 3 meters thick. In 2015, ocean heat has been melting the sea ice from underneath. So, even while the currently lower temperatures of the air may have resulted in a slight increase in extent over the past week, the added ice is very thin. Ocean heat first of all goes into melting the thickest sea ice, i.e. the parts that are meters below the surface. This because the water at surface level is colder than the water underneath the surface. This explains why much of the water surface will remain covered by (very thin) ice as air temperatures are now falling (compared to air temperatures over the past few months).

The image below shows sea surface temperatures as at September 17, 2015.

In conclusion, while the sea ice appears to have survived the 2015 melting season without collapsing, the threat that this will occur in the coming years is ominous. Lack of multi-year sea ice makes that sea ice is in a very vulnerable situation. Total collapse of sea ice is therefore more likely to happen in the coming years. Every time ocean heat will arrive in the Arctic Ocean at its fullest strength in future, this heat will no longer be able to be fully absorbed by the process of melting thick sea ice, so what's left of the sea ice will melt very quickly.

There is a strengthening El Niño, while more open water increases the chance that storms will develop that will push the last remnants of the sea ice out of the Arctic Ocean, as discussed in earlier posts such as this one. Storms can also mix warm surface waters all the way down to the seafloor, as discussed in this earlier post. Cyclones that emerge with greater force due to high sea surface temperatures further increase this danger.

The big danger is that ocean heat will cause methane contained in sediments on the Arctic Ocean seafloor to be released abruptly in large quantities, triggering further methane releases spiraling into runaway warming.

The situation is dire and calls for comprehensive and effective action, as discussed in the Climate Plan.

Below is a text-only version of this post for radio.

Sea ice thickness on September 24, 2012 (left panel) compared to a forecast for September 24, 2015 (right panel). This...
Posted by Sam Carana on Friday, September 18, 2015
